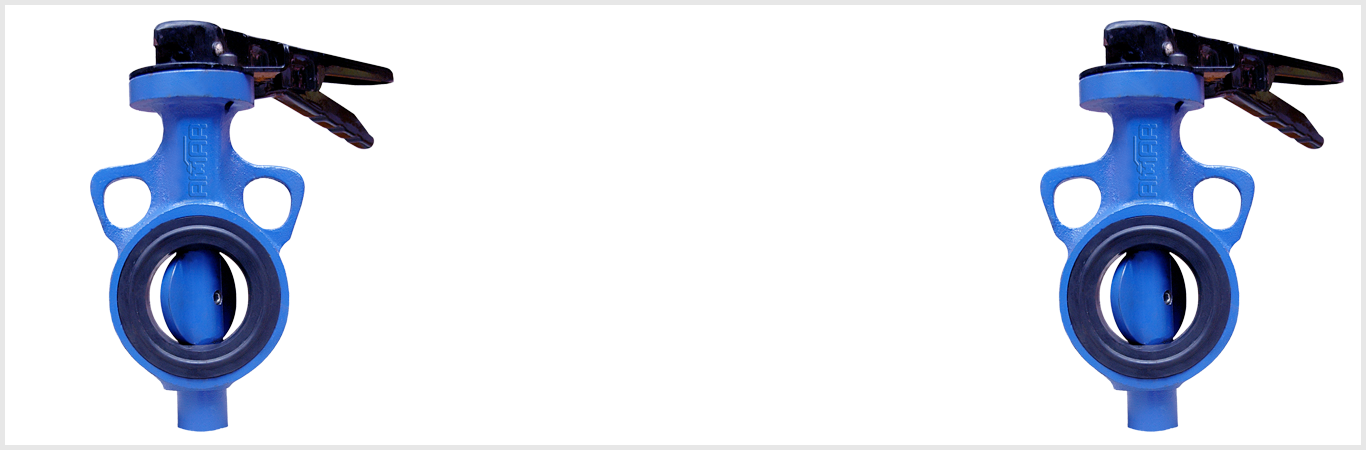

BUTTERFLY VALVES
TECHNICAL DATA
Mfg. Std. : BS 5155
Testing & Insp. Std. : BS 6755 / BSD 5155
| BODY | CF-8M / CF-8 / I.S. 210 GR F4 200 / 220 |
| DISC | CI / CF-8 / CF-8M |
| SHAFT | AISI – 410/ 304 / 316 |
| SEAT | NITRILE / E PDM |
| SIZE | 40 MMTO 300 MM |
TEST PRESSURE
| TEMP | -200 TO + 1800 C |
| TEST PR. BODY | 16 Kg/Cm2 |
| SEAT | 11.5 Kg/Cm2 |
ALL DIMENSION ARE IN MM.
