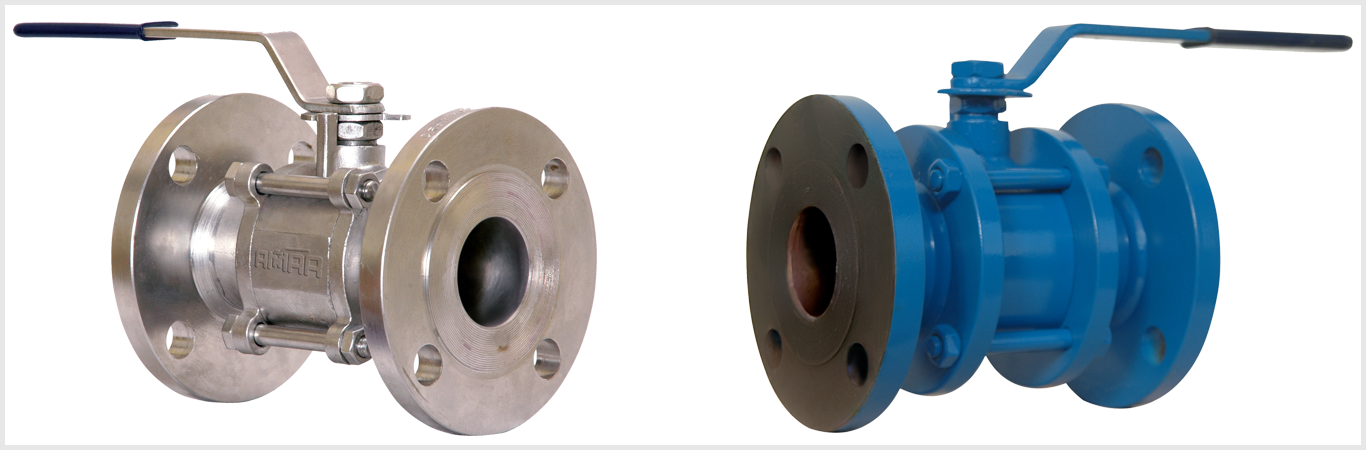

3PCS FLANGED BALL VALVES
TECHNICAL DATA
Mfg. Std. : BS 5351
Testing & Insp. Std. : BS 6755
| SIZE ( MM ) | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | |
| F TO F | 150# | 108 | 118 | 127 | 165 | 178 | 190 | 203 | 229 | 267 | 292 |
| 300# | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 403 | 419 | |
TEST PRESSURE
| CLASS | HYDRO TEST | AIR TEST | |
| - | BODY Kg/Cm2 | SEAT Kg/Cm2 | SEAT Kg/Cm2 |
| ASA – 150# | 32 | 22 | 7 |
| ASA – 300# | 32 | 22 | 7 |
ALL DIMENSION ARE IN MM.
