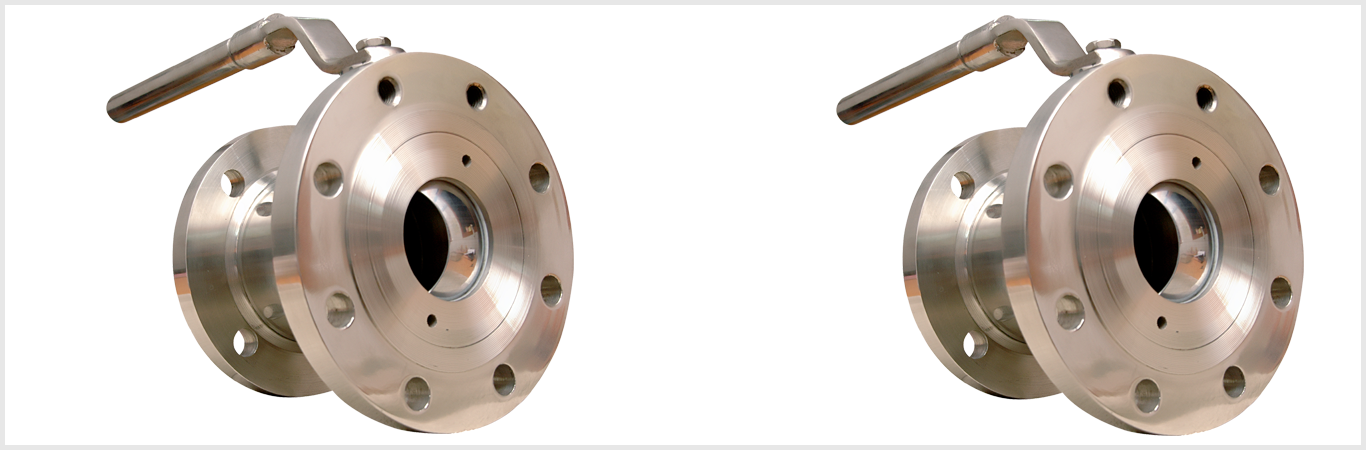

1PCS FLANGED FLUSH BOTTAM BALL VALVES
TECHNICAL DATA
Mfg. Std. : BS 5351
Testing & Insp. Std. : BS 6755
| SIZE ( MM ) | 25 X 40 | 40 X 50 | 50 X 65 | 50 X 80 | 65 X 80 | 80 X 100 | 100 X 150 |
| F TO F 150# | 96 | 112 | 130 | 130 | 150 | 165 | 190 |
TEST PRESSURE
| CLASS | HYDRO TEST | AIR TEST | |
| - | BODY Kg/Cm2 | SEAT Kg/Cm2 | SEAT Kg/Cm2 |
| ASA – 150# | 32 | 22 | 7 |
ALL DIMENSION ARE IN MM.
